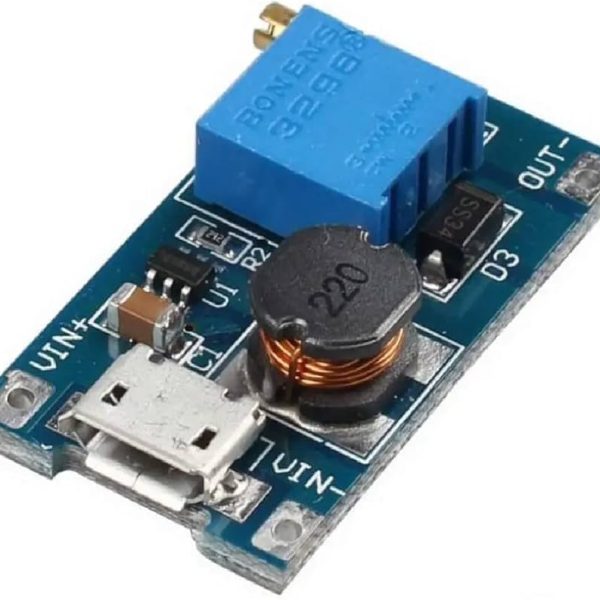

MT3608 2A Max DC-DC Step Up Power Booster Module

MT3608 DC-DC Step-Up Boost Converter Module – Adjustable 2A Power Supply

The MT3608 DC-DC step-up module is a compact and high-efficiency boost converter that increases low input voltages (2V–24V) to adjustable output voltages up to 28V, with a maximum output current of 2A. Designed for use with Arduino, ESP32, ESP8266, Raspberry Pi, and other low-power microcontrollers.

This module is ideal for battery-powered, portable, and embedded projects in Bangladesh, where stable voltage is required from low-voltage sources like 18650 cells or 3.7V Li-ion batteries.

Key Features:

• IC: MT3608

• Input Voltage: 2V – 24V

• Output Voltage: 5V – 28V (adjustable)

• Max Output Current: 2A (depends on input voltage and load)

• Efficiency: Up to 93%

• Onboard potentiometer for voltage adjustment

• Power LED indicator

Applications:

• Boost 3.7V battery to 5V, 9V, or 12V for modules

• Power supply for Arduino, ESP32, and sensors

• IoT devices and low-voltage embedded systems

• Portable electronics and educational kits in Bangladesh

The MT3608 boost converter is a cost-effective solution for powering electronics where voltage step-up is required.
